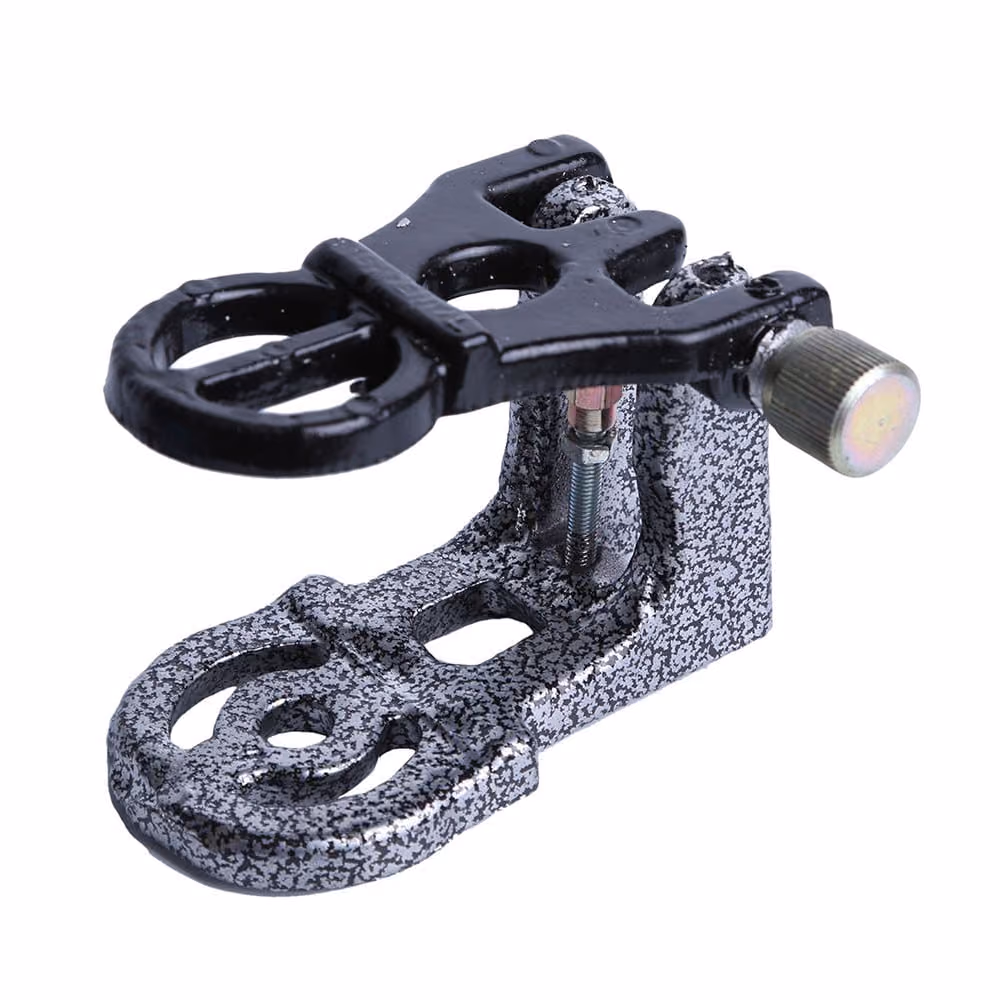

Occludator (Simple Hinge Articulator)
Simple hinge-type articulator that holds upper and lower casts opposed at a fixed vertical dimension, for laboratory work needing quick mounting.
- Stock code
- 8690000011858
We do not publish prices; they depend on size and quantity.
Description
An occludator is a simple articulator that holds upper and lower plaster casts opposed at a fixed vertical dimension and opens and closes on a single axis. The casts are mounted to the upper and lower arms with plaster, and because the hinge allows only opening and closing, the closing relationship is maintained in one position. It is used for work where excursive movement does not need to be assessed: single-unit crown and bridge waxing, denture repair and relining, and the fabrication of removable orthodontic plates. Unlike an adjustable articulator it cannot reproduce lateral or protrusive jaw movement, so it is not the instrument of choice for extensive occlusal reconstruction. In exchange, it is light and quick to mount, which makes it practical to run several cases at once in the laboratory. Minimal play in the hinge is the key quality point: it determines whether the casts return to exactly the same closing position each time, and an occludator with a loose joint can produce a waxed occlusal surface that does not fit in the mouth.
Specifications
| Device type | Simple hinge articulator (occludator) |
|---|---|
| Movement | Single-axis opening and closing (hinge) movement |
| Function | Holds upper and lower casts opposed at a fixed vertical dimension |
| Cast attachment | Casts are mounted to the upper and lower arms with plaster |
| Frame | Metal frame with a hinged joint |
| Indications | Single-unit crown and bridge waxing, simple denture repair and reline, orthodontic plate fabrication |
| Versus an adjustable articulator | Does not simulate lateral or protrusive movement |
| Advantage | Light, quick to mount and economical to keep in quantity in the laboratory |
